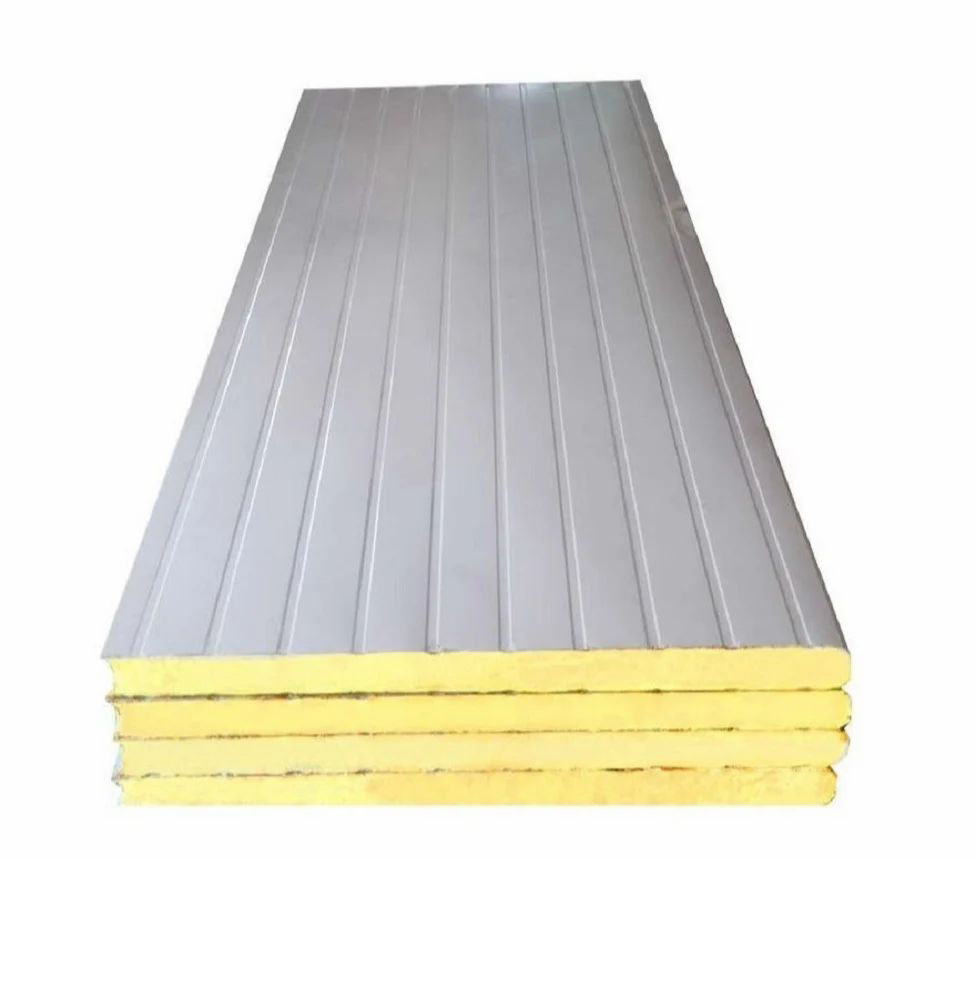

Technical Specifications of PUFF Panels
AICS Industries Limited - Reliable Insulation for Cold Storage At AICS Industries Limited, we manufacture high-performance PUF (Polyurethane Foam) Panels tailored for cold storage rooms and industrial refrigeration applications. Our panels are designed with durability, thermal efficiency, and ease of installation in mind-ideal for clients seeking long-term, energy-saving insulation solutions.
Panel Thickness Options
We offer a range of PUFF panel thicknesses based on insulation needs and structural requirements:
- 60 mm, 80 mm, 100 mm, 125 mm, and 150 mm
Surface Material Choices
Our PUFF panels are available with high-quality surface finishes for both aesthetics and performance:
- GI Pre-Painted Sheets
- Stainless Steel Sheets (Grade 304/316 - Matte and 2B finishes)
- GI Plain Sheets
- Plain Galvanized Iron Sheets
Note: Different materials can be used for inside and outside surfaces based on client requirements.
Floor Options
Depending on your operational environment, we offer various flooring solutions:
- (A) PUFF slab with Kota stone or concrete floor, both sides tar felt coated
- (B) Metal surface camlock-fit panels for temperature retention
- (C) Aluminum chequered plate with marine ply
- (D) FRP (Fiber Reinforced Plastic) cladding for hygienic surfaces
Room Size & Height
- Minimum size:78 m (Length & Width); scalable in 0.146 m increments
- Panel height:
- 60 mm thickness: 2.47 m
- 80 mm: 2.51 m
- 100 mm: 2.55 m
- 125 mm: 2.60 m
- 150 mm: 2.65 m
- Maximum height available: Up to 12 m (customizable per requirement)
Door Options
We provide a range of insulated doors that ensure durability, ease of access, and thermal sealing:
(A) Flush Type Swing Door
- FRP profile, imported hardware, and push-type gasket with replaceable heater
- Sizes: 24"x72", 30"x72", 34"x78", 46"x84" (W x H)
(B) Overlap Type Door
- Teak wood frame with metal cladding and heavy-duty hardware
- Sizes: 45"x84", 49"x84", 54"x84", 60"x90"
(C) Sliding Door System
- Delivered as a complete unit with rails and bottom roller guide
- Widths: 1000 / 1200 / 1500 / 1800 mm
- Height: 2100 to 3000 mm
- Thickness: 80 mm
As a young and quality-focused company, AICS Industries Limited is committed to providing customizable, technically sound, and energy-efficient cold storage solutions to help businesses across industries meet their refrigeration needs effectively.
|
|
|
|
|
